Conveyor Assembly PDF
All components, including hardware, are stainless steel.

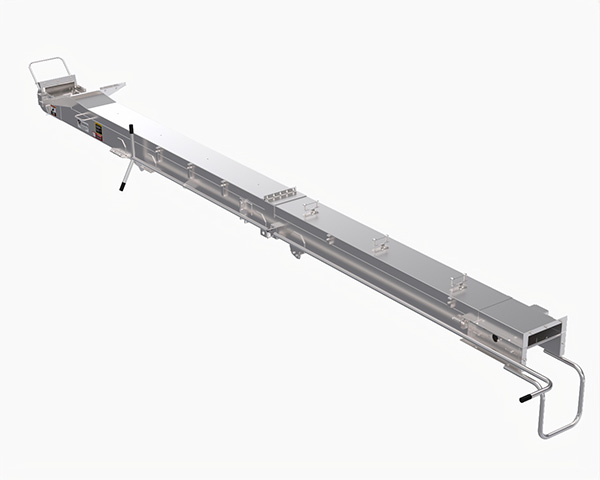

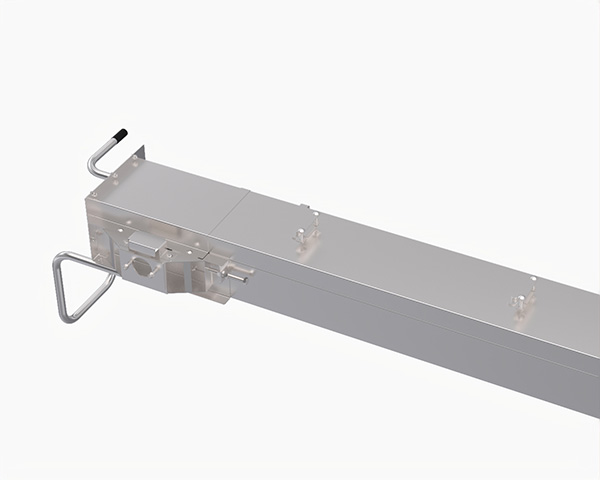

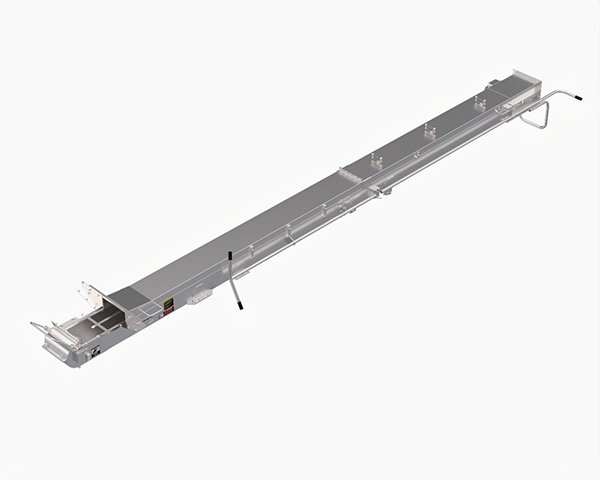

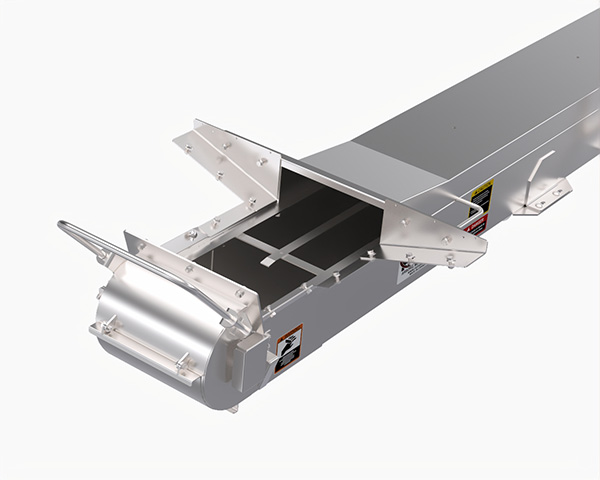

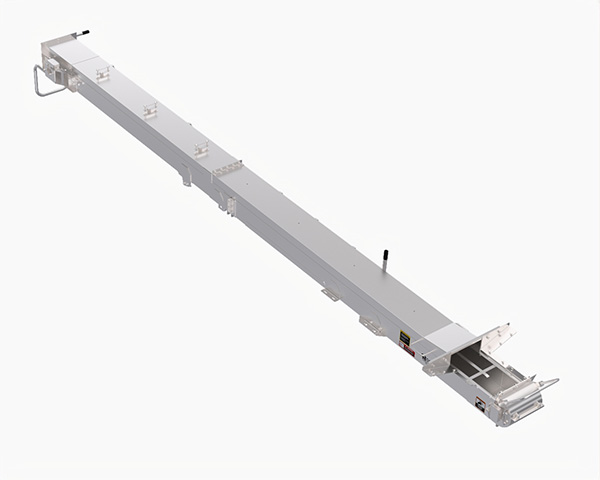

Conveyor Housing Kit Components:
• Top & bottom conveyor sections
• Scraper Bracket
• Lower adjustable bearing bracket
• Covers - bearings, cleanout w/ latch, sprocket, top of conveyor Bottom handle
• Hopper support brackets
• Upper tightener brackets and motor mount plate
• Hydraulic line clamps
• Latch and positioning plate
• Stainless steel hardware for the conveyor
Additional kits available to add to JAS5100A:
JAS5790K - parts kit to upgrade to a full conveyor (exc. hydraulics) JAS5791K - hydraulics kit.
|
